面向航空高精度管材制备的冷变形-退火热处理联动工艺调控TC4钛合金微观缺陷及综合力学性能优化研究

TC4钛合金的名义成分为Ti-6Al-4V，是1954年由美国研制的一种α＋β型双相钛合金，兼具α型及β型钛合金的优点，具有高强度、耐腐蚀、耐高温、抗氧化等特点，是全球应用最为广泛的钛合金［1-3］ 。尤其在航空航天方面，如飞机机身所用的钛合金，TC4占比可达70％～90％。

TC4钛合金组织中的α⁃Ti为密排六方结构，滑移系较少，冷变形相对困难，加上TC4合金的高比强度，导致该合金的冷变形能力较差，在冷轧制管过程中易发生表面开裂，极大增加了TC4钛合金无缝管冷轧制备的难度。目前国内TC4管材通常以热挤压或斜轧穿孔等方法制备管坯［4-6］ ，后续多采用温轧方式生产TC4钛合金管材制品［7］ ，但温轧需在轧管机上加装感应加热装置，这种加工设备结构复杂、工艺繁琐、生产成本高。冷轧适合制备表面质量和尺寸精度要求高的管材，能得到较好的成形效果和加工率，但对材料的塑性有较高的要求。李凯玥［8］研究了冷轧工艺对TC4钛合金薄壁管材组织性能的影响，指出冷轧道次和道次间变形量对TC4轧制管材的表面质量和力学性能有显著影响。王国迪等［9］研究表明，TC4钛合金冷变形量会直接影响合金的微观组织和退火再结晶行为。目前国内外针对TC4钛合金无缝管的研究主要以热变形为主，而冷变形工艺研究则鲜有报道。本文以热挤压φ86ｍｍ×5ｍｍ规格TC4管材为冷轧管坯，研究了道次不同冷变形量和退火温度对TC4管坯微观组织、织构演变和力学性能影响规律，旨在为高精度钛管冷轧工业化提供重要支撑。

1、试验材料与方法

试验选用3t的Φ750mmTC4钛合金铸锭,其化学成分见表1。采用自由锻方式在45MN锻机上将TC4铸锭分别锻成Φ230mm棒坯,棒坯经过卧式挤压机(45MN)在950℃热挤压成∅90mmx9mm挤压管,经扒皮、镗孔等处理得到∅86mmx5mm冷轧用管坯,管坯在立式真空炉(VCQV-480)中于800℃退火2h后,再依次经过两辊(LG90、LG60)和三辊(LD60)轧机三道次冷轧成TC4成品管,冷轧变形量依次为29%、44%和22%,分别对应Q值(相对减壁量与相对减径量的比值)为1.8、1.0和2.5。每道次轧制完成后的钛管先进行退火(退火温度:800℃,保温时间:2h)后，再开展下一道次冷轧，直到轧至成No.3钛管。对道次冷变形的No.1~No.3TC4管坯取样并分别进行750~850℃的退火热处理试验，如表2所示，退火管随炉冷却。

表1 TC4钛合金铸锭的化学成分(质量分数，%)

Table 1 Chemical composition of the TC4 titanium alloy ingot(mass fraction,%)

表2 TC4钛合金无缝管的工艺参数

Table 2 Processing parameters of the TC4 titanium alloy seamless tubes

冷轧及退火管沿轴向取10mm×10mm×10mm金相试样,先用180~800目砂纸打磨,再进行机械抛光10min制备成电子背散射衍射(EBSD)样品,抛光液为SiO₂悬浊液(粒度40nm)。通过7900F型扫描电镜观察管材径向(RD)-轴向(AD)面的微观组织及织构。采用Kroll试剂(4%HF和20%HNO3的水溶液)对试样进行腐蚀,并用光学显微镜(Axio Imager M2m)观察试样微观组织。采用Instron AUTO-T型万能试验机测试管材轴向室温拉伸性能。

2、试验结果与讨论

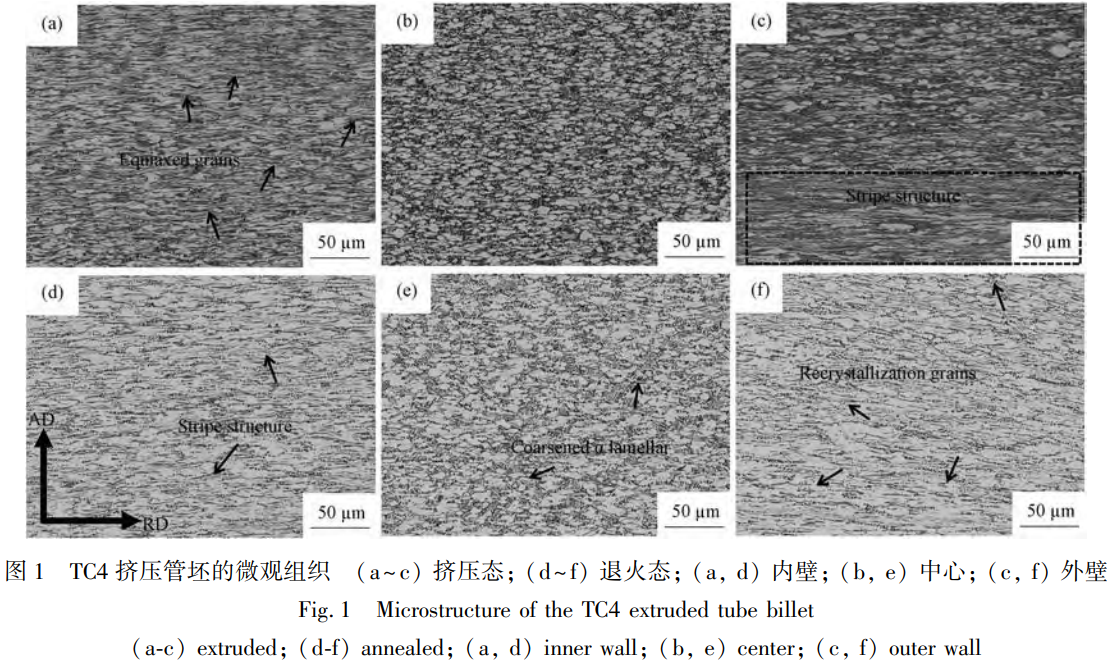

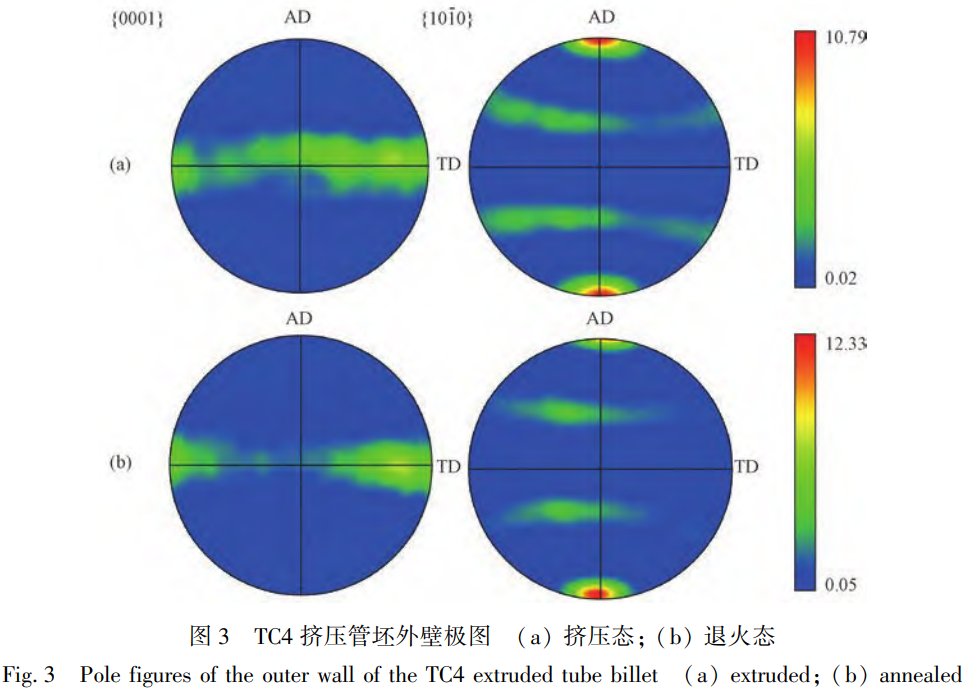

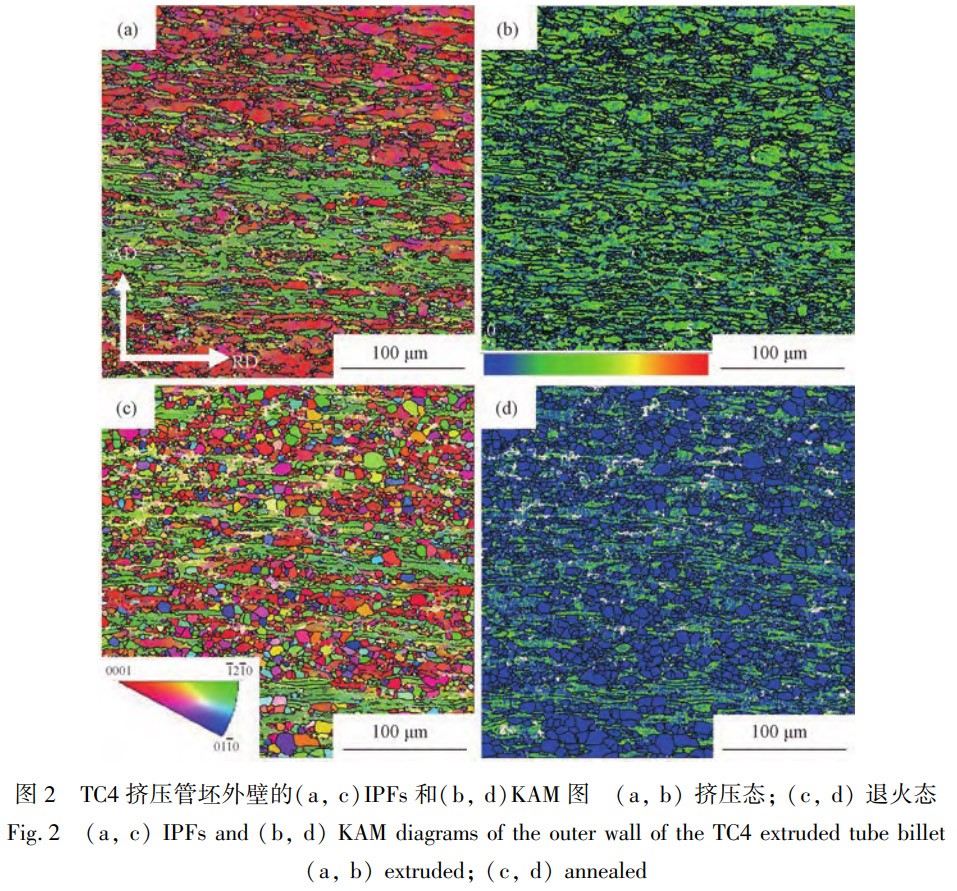

2.1挤压管坯微观组织

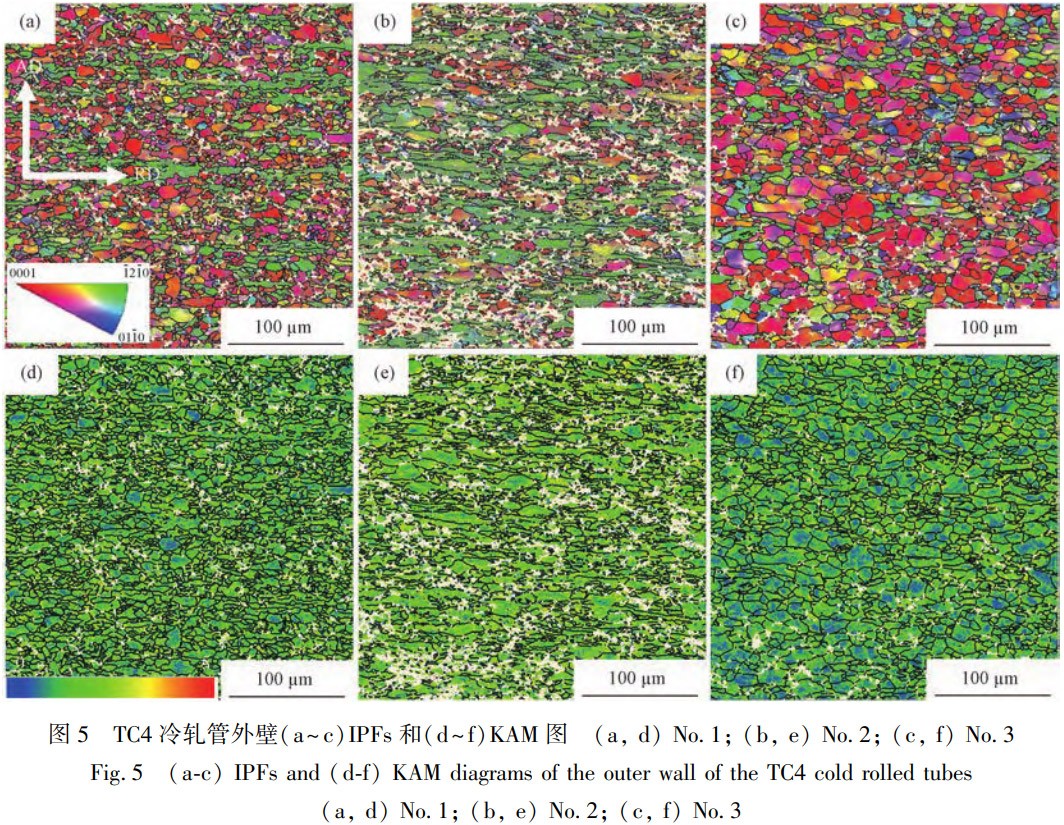

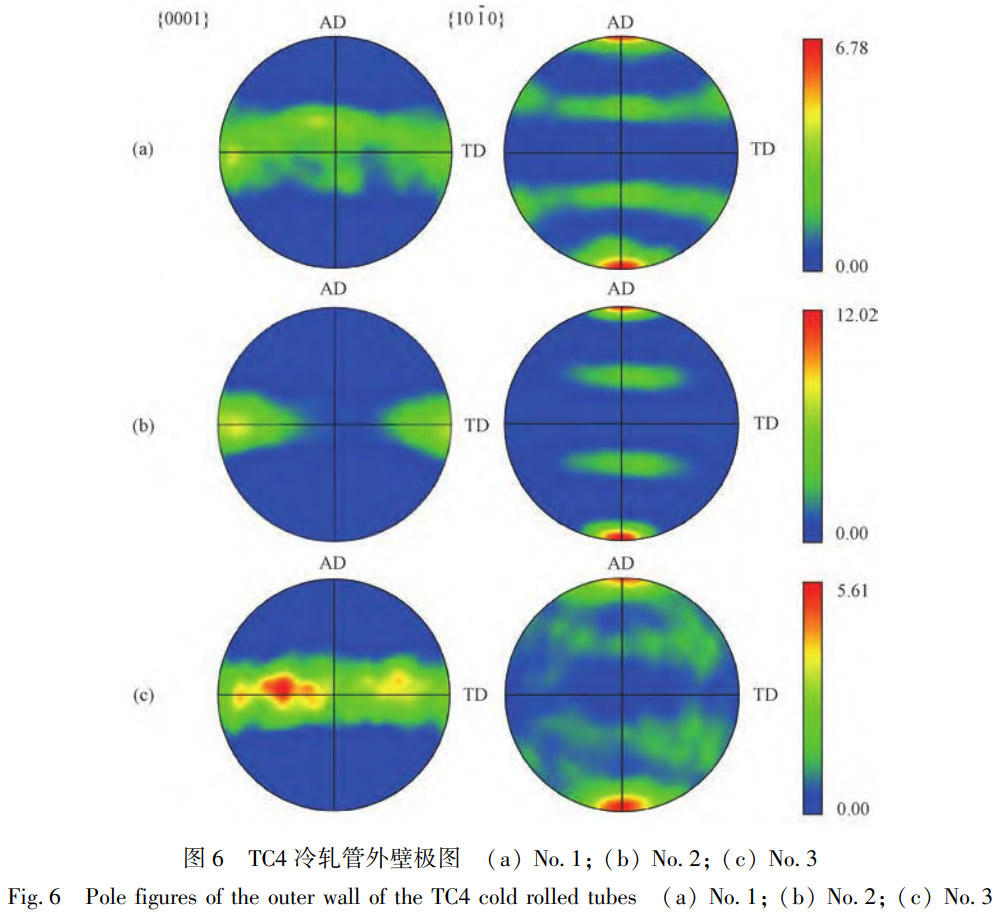

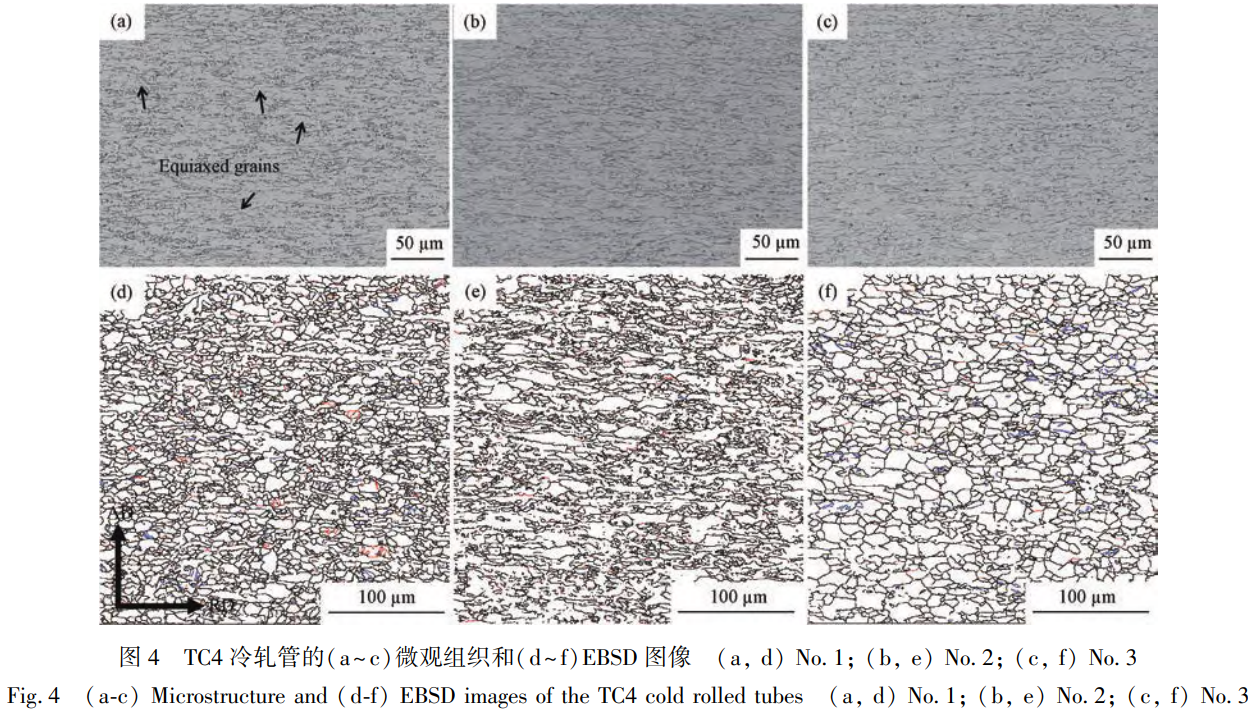

2.2冷轧对组织织构的影响

表3 TC4冷轧管中孪晶界占比

Table 3 Twin boundary proportion in the TC4 cold rolled tubes

表4 TC4冷轧管不同滑移系的施密特因子

Table 4 Schmid factors of different slip systems in the TC4 cold rolled tubes

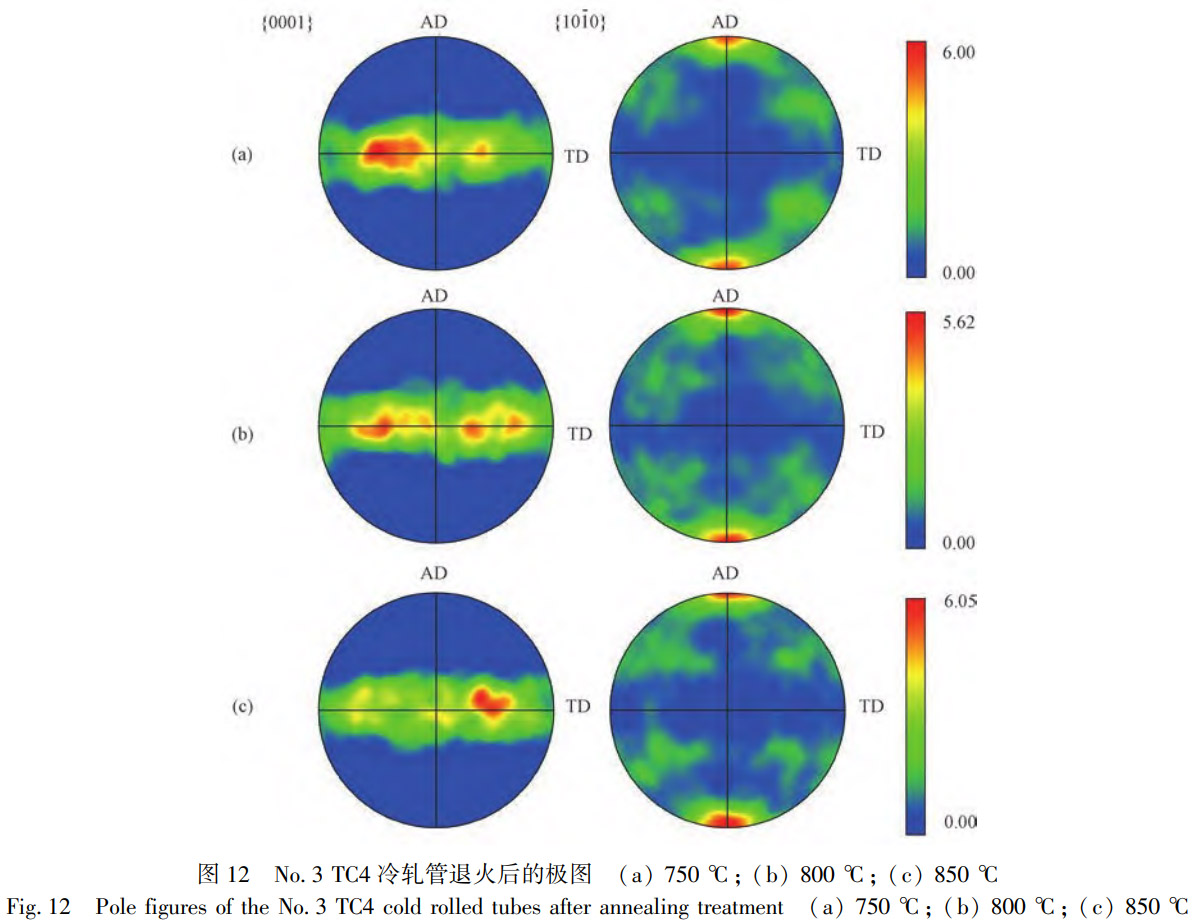

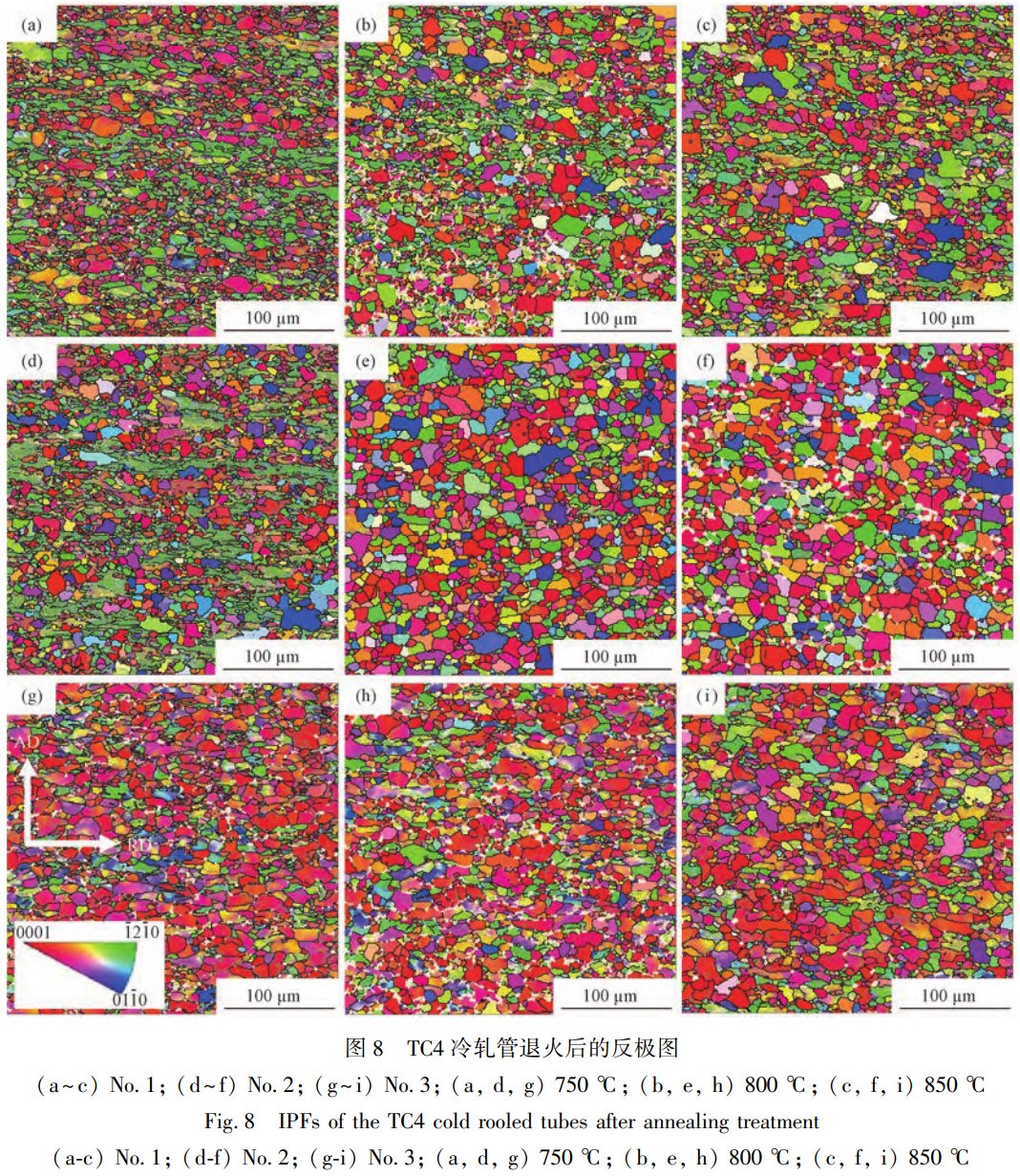

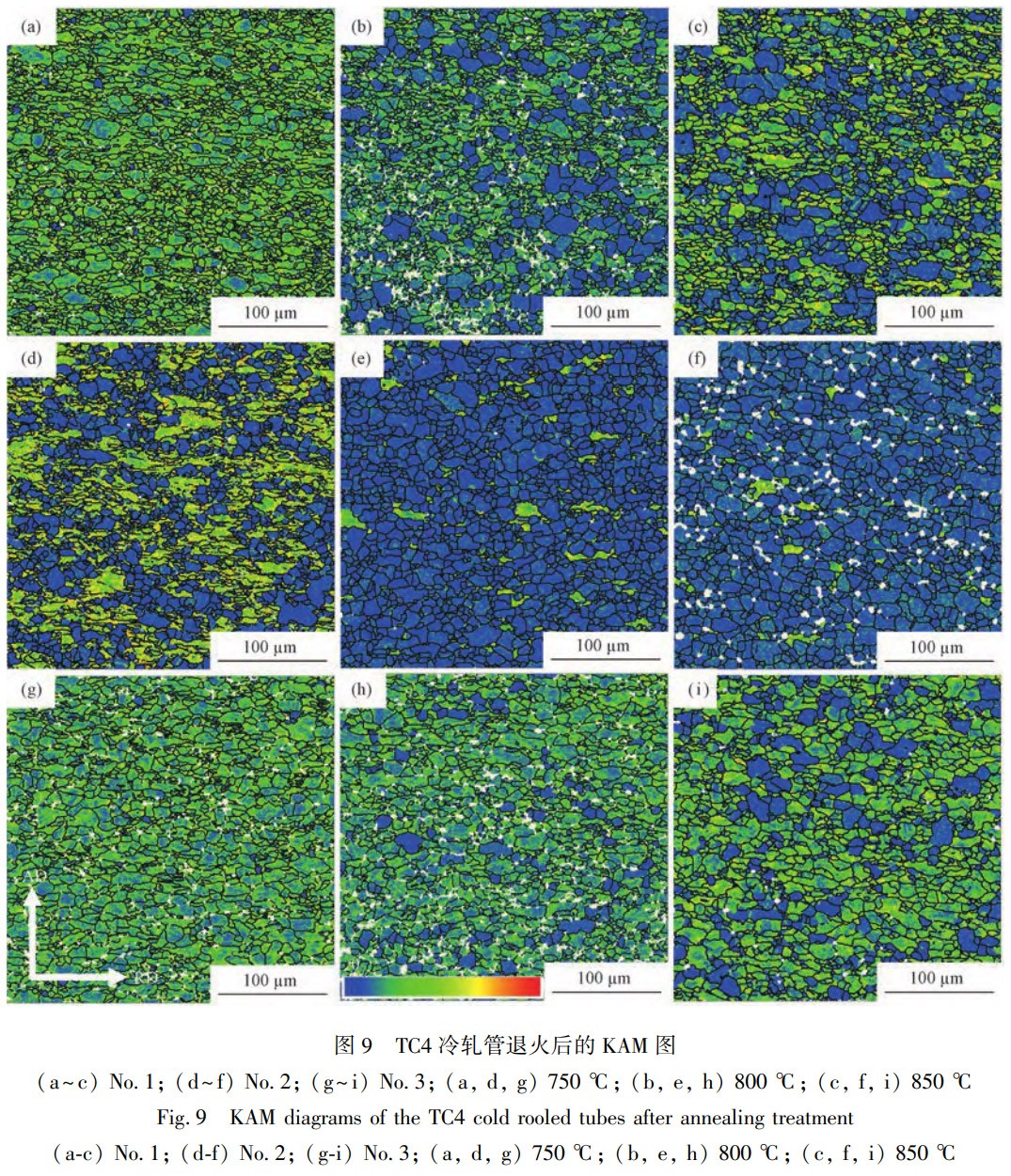

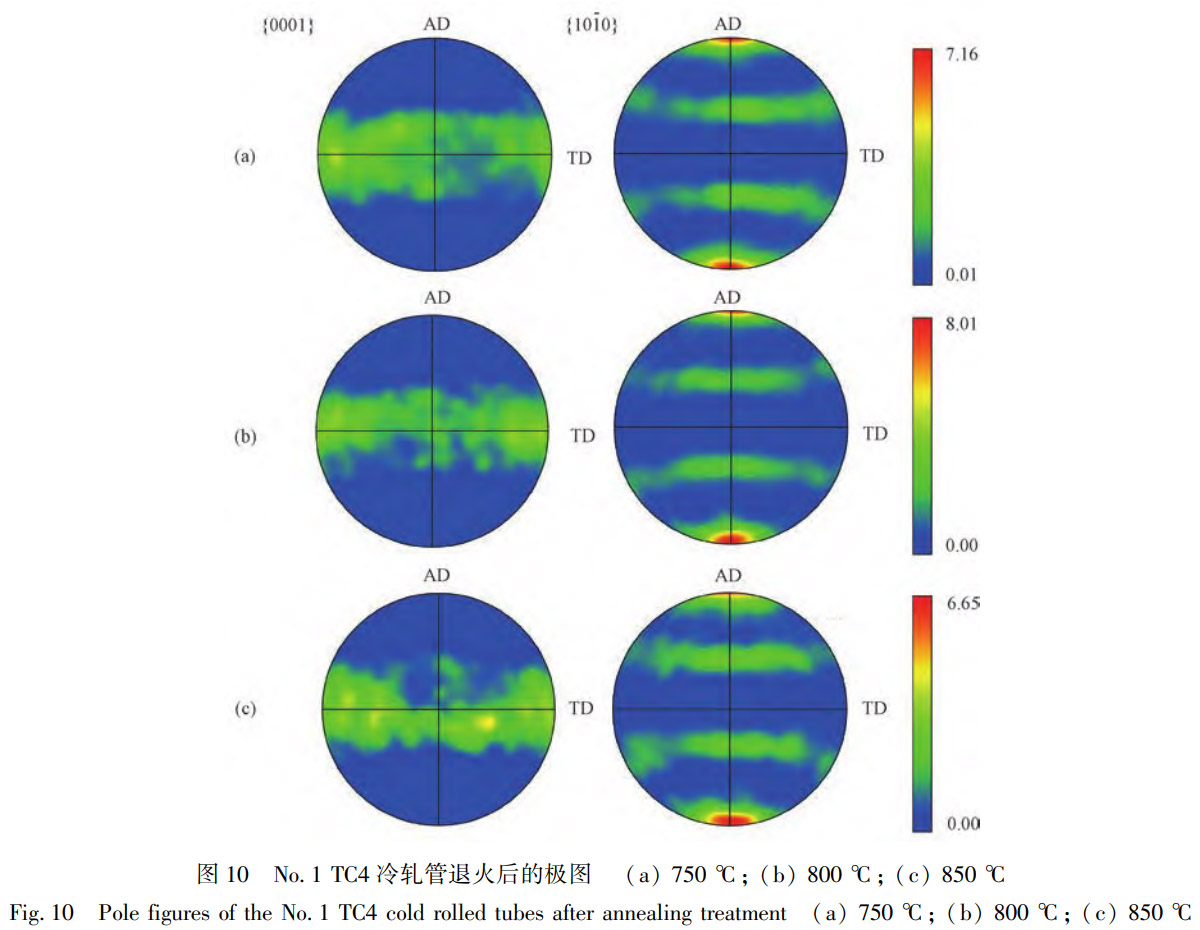

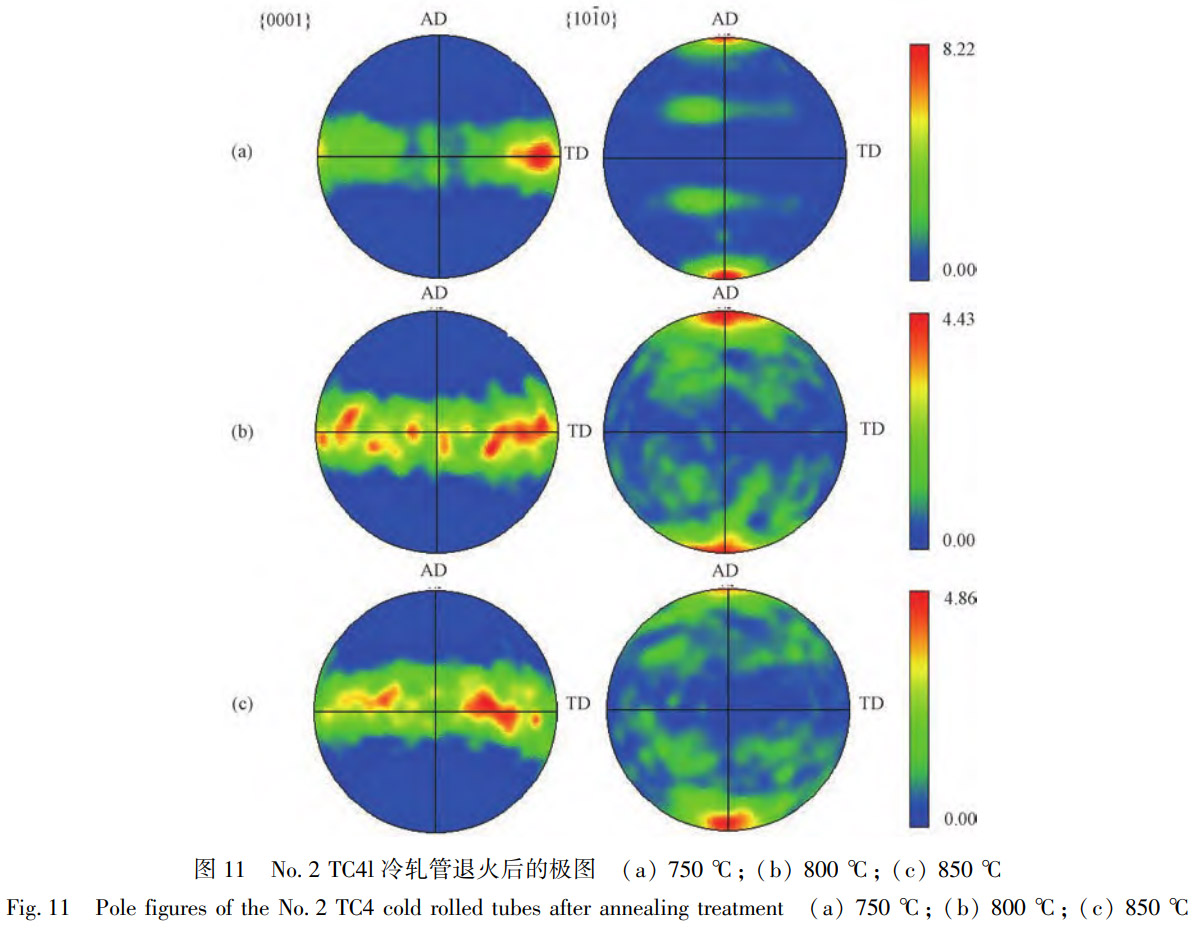

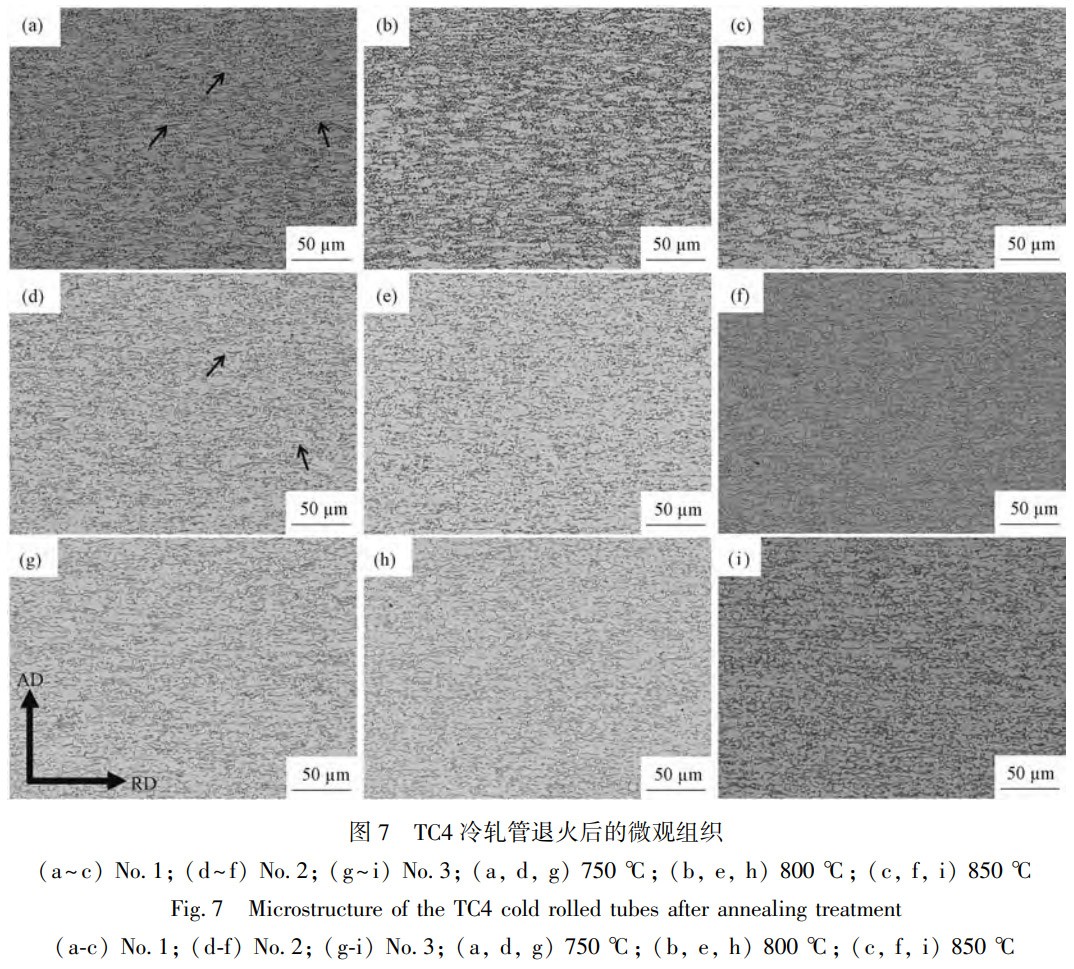

2.3退火过程再结晶与织构演变

表5不同退火温度下TC4冷轧管材的晶粒各取向及再结晶占比

Table 5 Grain orientation and recrystallization grain proportion of the TC4 cold rolled tubes after annealing at different temperatures

表6 不同退火温度下TC4冷轧管材的晶粒尺寸分布

Table 6 Grain size distribution of the TC4 cold rolled tubes after annealing at different temperatures

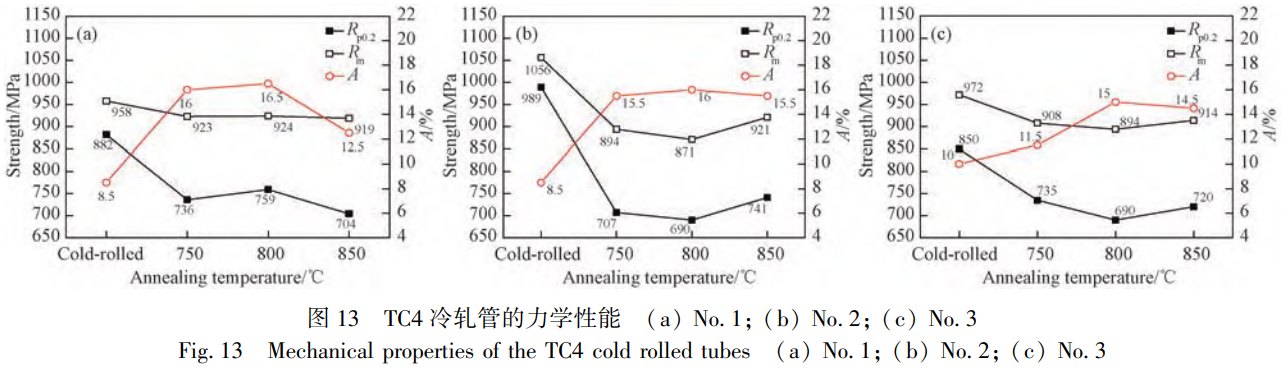

2.4力学性能

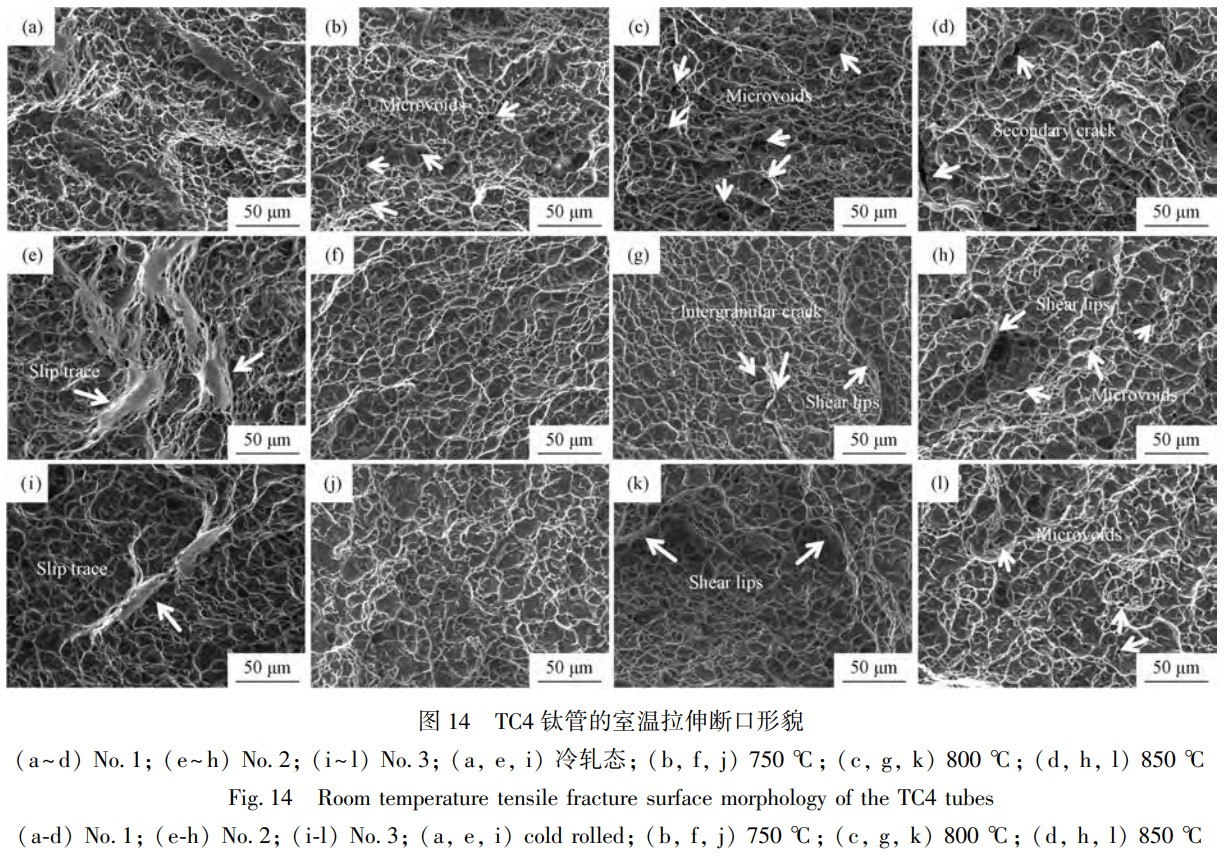

2.5 断口分析

3、结论

1)冷轧组织取决于道次变形量,小变形时组织中保留大量形态完整的等轴α晶粒;大变形量(44%)促使等轴α晶粒消失,形成纤维状组织;

2)大变形会促使TC4钛管中纤维状α相形成并增强变形织构,而减壁为主的小变形可引发晶粒取向发生倾转,形成双峰分裂织构;

3)退火可促进生成基面织构取向的再结晶晶粒,800℃退火可充分释放TC4大变形试样的变形储能,实现完全再结晶,同时显著降低变形织构强度,提升塑性,850℃退火会略微增加合金管强度并降低伸长率;

4)建议工业生产中采用大变形结合800℃退火,可使TC4钛合金管材获得最佳力学性能;若需要更高的强度，则可选择750℃退火。

参考文献

[1]董恩涛,余伟,米永峰,等.TC4钛合金热轧无缝管组织性能分析与控制[J].包钢科技,2019,45(4):4-9.

DONG En-tao,YU Wei,MI Yong-feng,et al. Analysis and control for microstructure and properties of TC4 titanium alloy hot-rolled seamless tube[J].Science and Technology of Baotou Steel,2019,45(4):4-9.

[2]张鹏.TC4钛合金丝材热加工过程中组织演化及再结晶行为研究[D].西安:西安建筑科技大学,2024.

ZHANG Peng. The study of microstructure evolution and recrystallization behavior during the hot working process of TC4 titanium alloy wire[D].Xi'an:Xi'an University of Architecture and Technology,2024.

[3]张旻,帅美荣,李海斌,等.热处理对不同形变工艺钛合金棒材显微组织与性能的影响[J].材料热处理学报,2022,43(3):35-42.

ZHANG Min,SHUAI Mei-rong,LI Hai-bin,et al. Effect of heat treatment on microstructure and properties of titanium alloy bars prepared by different deformation processes[J].Transactions of Materials and Heat Treatment,2022,43(3):35-42.

[4]张永强,冯永琦,李渭清,等.TC4合金管材挤压成型工艺研究[J].稀有金属快报,2006,25(10):27-29.

ZHANG Yong-qiang,FENG Yong-qi,LI Weiqing,et al. Study of extrusion process for TC4 tube[J].Rare Metals Newsletter,2006,25(10):27-29.

[5]向柳.不同工艺下TC4管材组织与性能规律研究[D].沈阳:东北大学,2021.

XIANG Liu. Study on the rule of structures and properties of TC4 tube under different processes[ D]. Shenyang: Northeastern University,2021.

[6]肖雅静，徐先泽，张树启，等.斜轧穿孔法制备TC4合金管坯[J].稀有金属快报，2008,27(1):29-32.

XIAO Ya-jing,XU Xian-ze,ZHANG Shu-qi,et al.TC4 Titanium alloy seamless blooms made by rotary piercing[J].Rare Metals Newsletter,2008,27(1):29-32.

[7]谢林均,凤伟中,代春,等.钛合金加工中TC4无缝管材工艺研究[J].世界有色金属,2022(13):1-3.

XIE Lin-jun,FENG Wei-zhong,DAI Chun,et al. Study on TC4 seamless pipe process in titanium alloy processing[J].World Non-Ferrous Metals,2022(13):1-3.

[8]李凯玥.TC4钛合金薄壁管材冷轧工艺及组织性能研究[D].镇江:江苏科技大学,2012.

LI Kai-yue. Investigation on cold rolling process,microstructure and properties of TC4 alloy thin thickness tubes[D].Zhenjiang:Jiangsu University of Science and Technology,2012.

[9]王国迪,景然,张曼雪,等.冷轧变形量及再结晶对TC4合金组织与性能的影响[J].金属热处理,2022,47(3):48-52.

WANG Guo-di,JING Ran,ZHANG Man-xue,et al. Effects of cold rolling deformation and recrystallization on microstructure and properties of TC4 alloy[J].Heat Treatment of Metals,2022,47(3):48-52.

[10] Zhu W. The effect of crystallographic orientation on globularization and texture evolution during the annealing of a near a titanium alloy tube[J].Materials Today Communications,2024,39:109080.

[11]韩盈,余伟,董恩涛,等.轧制工艺对TC4合金板材织构演变及组织和性能的影响[J].稀有金属材料与工程,2021,50(10):3585-3590.

HAN Ying,YU Wei,DONG En-tao,et al. Effect of rolling process on texture evolution,microstructure and mechanical properties of TC4 alloy plate[J].Rare Metal Materials and Engineering,2021,50(10):3585-3590.

[12]He C X,Zhang Z X,Wang B L,et al.Twinning behavior and texture evolution of pure titanium during corrugated-flat rolling under wide temperature range[J].Journal of Alloys and Compounds,2025,1024:180198.

[13]Wu X P,Kalidinidi S R,Necker C,et al. Prediction of crystallographic texture evolution and anisotropic stress-strain curves during large plastic strains in high purity a-titanium using a Taylor-type crystal plasticity model[J]. Acta Materialia,2007,55(2):423-432.

[14]Wang B,Xiang Z L,Zhou Z Y,et al. Effect of microstructure and texture on mechanical properties of TA1 pure titanium sheets in different rolling processes[J].Materials Today Communications,2025,46:112560.

[15]Tirry W,Coghe F,Bouvier S,et al. A multi-scale characterization of deformation twins in Ti6Al4V sheet material deformed by simple shear[J].Materials Science and Engineering A,2010,527(16):4136-4145.

[16]Wang L,Zheng Z,Phukan H,et al. Direct measurement of critical resolved shear stress of prismatic and basal slip in polycrystalline Ti using high energy X-ray diffraction microscopy[J].Acta Materialia,2017,132:598-610.

[17]Wang J,Hoagland R G,Hirth J P,et al. Nucleation of a(1012) twin in hexagonal close-packed crystals[J].Scripta Materialia,2009,61(9):903-906.

[18]Wang L,Yang Y,Eisenlohr P,et al. Twin nucleation by slip transfer across grain boundaries in commercial purity titanium[J].Metallurgical and Materials Transactions A,2009,41(2):421-430.

[19]Wu J,Wang L,Liu X,et al. Evolution of microstructure and microtexture in Ti-2Al-2.5Zr during one pass cold pilgering[J].Rare Metal Materials and Engineering,2022,51(4):1145-1151.

[20]Deng S Y,Song H W,Zheng C,et al. Selection of deformation modes and related texture evolution in Zircaloy-4 during one pass cold pilgering[ J]. Materials Science and Engineering A,2019,764:138280.

[21] Krishna K V M,Sahoo S K,Samajdar I,et al. Microstructural and textural developments during Zircaloy-4 fuel tube fabrication[J].Journal of Nuclear Materials,2008,383(1/2):78-85.

[22]Wang L,Eisenlohr P,Yang Y,et al. Nucleation of paired twins at grain boundaries in titanium[ J].Scripta Materialia,2010,63(8):827-830.

[23]颜孟奇,张业勤,齐立春,等.TC4钛合金冷轧无缝管材的制备工艺及织构演变规律研究[J].材料开发与应用,2020,35(5):63-68.

YAN Meng-qi,ZHANG Ye-qin,QI Li-chun,et al. Technology and texture revolution of TC4 alloy cold rolling seamless tube[J].Material Development and Application,2020,35(5):63-68.

[24]魏栋,项豪特,李萌,等.高性能管材冷轧成形微观织构演变与调控研究进展[J].材料导报,2025,39(12):1-19.

WEI Dong,XIANG Hao-te,LI Meng,et al. Research status on texture evolution and control of high-performance tube in cold pilgering process[J].Materials Reports,2025,39(12):1-19.

[25] Li K, Yang P. Interaction among deformation, recrystallization and phase transformation of TA2 pure titanium during hot compression[J].Transactions of Nonferrous Metals Society of China,2016,26(7):1863-1870.

[26]杨奇,惠松骁,叶文君,等.冷轧TA18钛合金管材退火织构的形成机制[J].稀有金属材料与工程,2023,52(3):899-910.YANG Qi,HUI Song-xiao,YE Wen-jun,et al. Formation mechanism of annealing texture of cold rolled TA18 titanium alloy tube[J].Rare Metal Materials and Engineering,2023,52(3):899-910.

[27] Sun T,Yang X,Liu T,et al. Effect of annealing temperature on microstructure and mechanical properties of asymmetrically rolled unalloyed titanium ultra-thin strips[J].Materials Science and Engineering A,2025,924:147773.

[28]陈洪美,臧千昊,张静,等.冷轧TC4钛合金管材的织构研究[J].特种铸造及有色合金,2015,35(10):1012-1015.CHEN Hong-mei,ZANG Qian-hao,ZHANG Jing,et al.Texture of TC4 titanium alloy tubes processed by cold rolling[J].Special Casting and Non-Ferrous Alloys,2015,35(10):1012-1015.

[29] Chen Y T,Wang K,Ren Z,et al. Interaction between phase transformation and static recrystallization during annealing of rolled TC18 titanium alloy[J].Journal of Materials Science& Technology,2024,202:1-15.

[30] Liu N,Wang Y,He W,et al. Microstructure and textural evolution during cold rolling and annealing of commercially pure titanium sheet[J].Transactions of Nonferrous Metals Society of China,2018,28(6):1123-1131.

[31] Wagner F,Bozzolo N,Landuyt O V,et al. Evolution of recrystallisation texture and microstructure in low alloyed titanium sheets[J].Acta Materialia,2002,50:1245-1259.

[32] Bozzolo N,Dewobroto N,Grosdidier T,et al. Texture evolution during grain growth in recrystallized commercially pure titanium[J].Materials Science and Engineering A,2005,397(1/2):346-355.

[33] Dixit S,Dash B B,Kumar D,et al. Influence of phase morphology,static recrystallization,and crystallographic texture on room temperature tensile properties of Ti-6Al-4V alloy:Comparison between post-tested equiaxed,bimodal,and lamellar microstructures[J].Materials Science and Engineering A,2023,873:144990.

[34]王庆娟,杜旭东,蒋立,等.退火处理对TC4钛合金航空发动机叶片组织与性能的影响[J].材料热处理学报,2023,44(8):1-9.

WANG Qing-juan,DU Xu-dong,JIANG Li,et al. Effect of annealing treatment on microstructure and properties of TC4 titanium alloy aero-engine blades[J].Transactions of Materials and Heat Treatment,2023,44(8):1-9.

（注，原文标题：冷变形及退火温度对TC4无缝管组织演变的影响_李晓煜）
